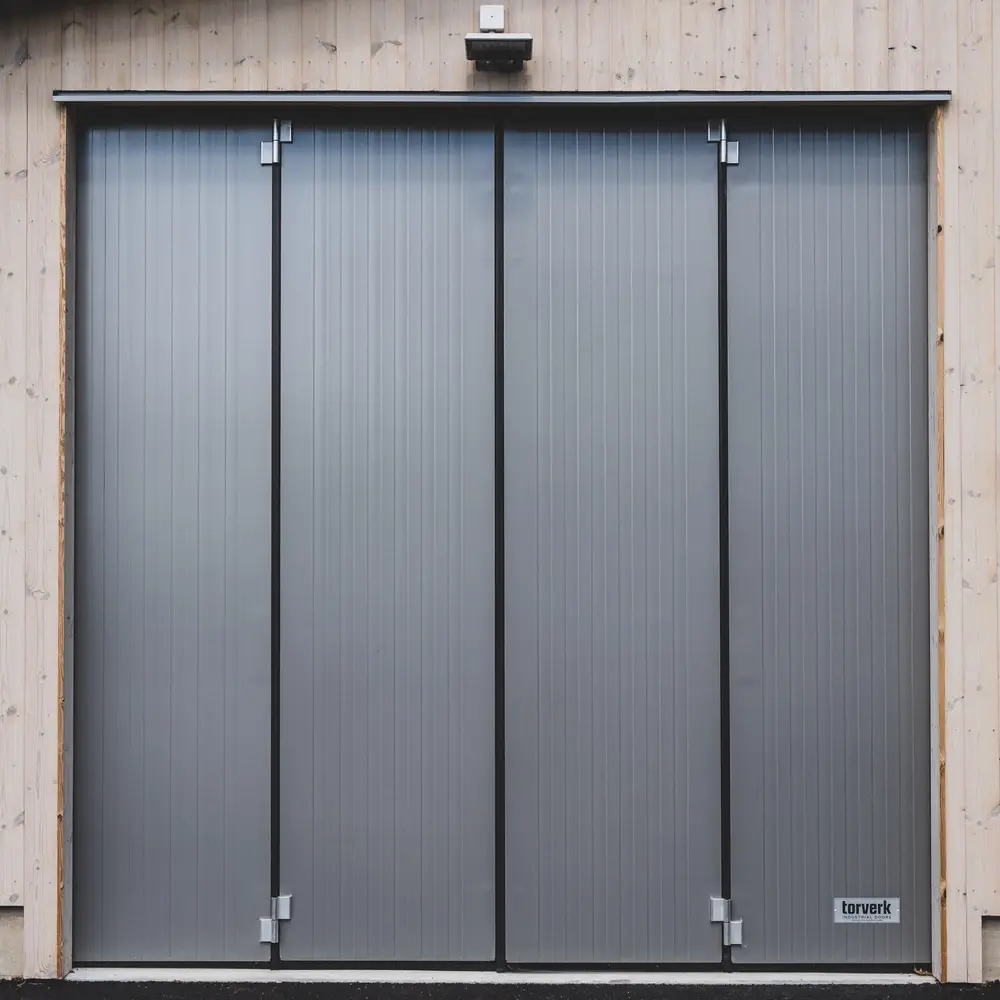

Q-Door FX Folding Door – Insulated and Durable Like a Steel Thermos

A folding door engineered for environments where reliability and thermal performance are critical. Q-Door FX helps reduce energy loss, minimize downtime, and support long-term savings.

Contact your sales representative

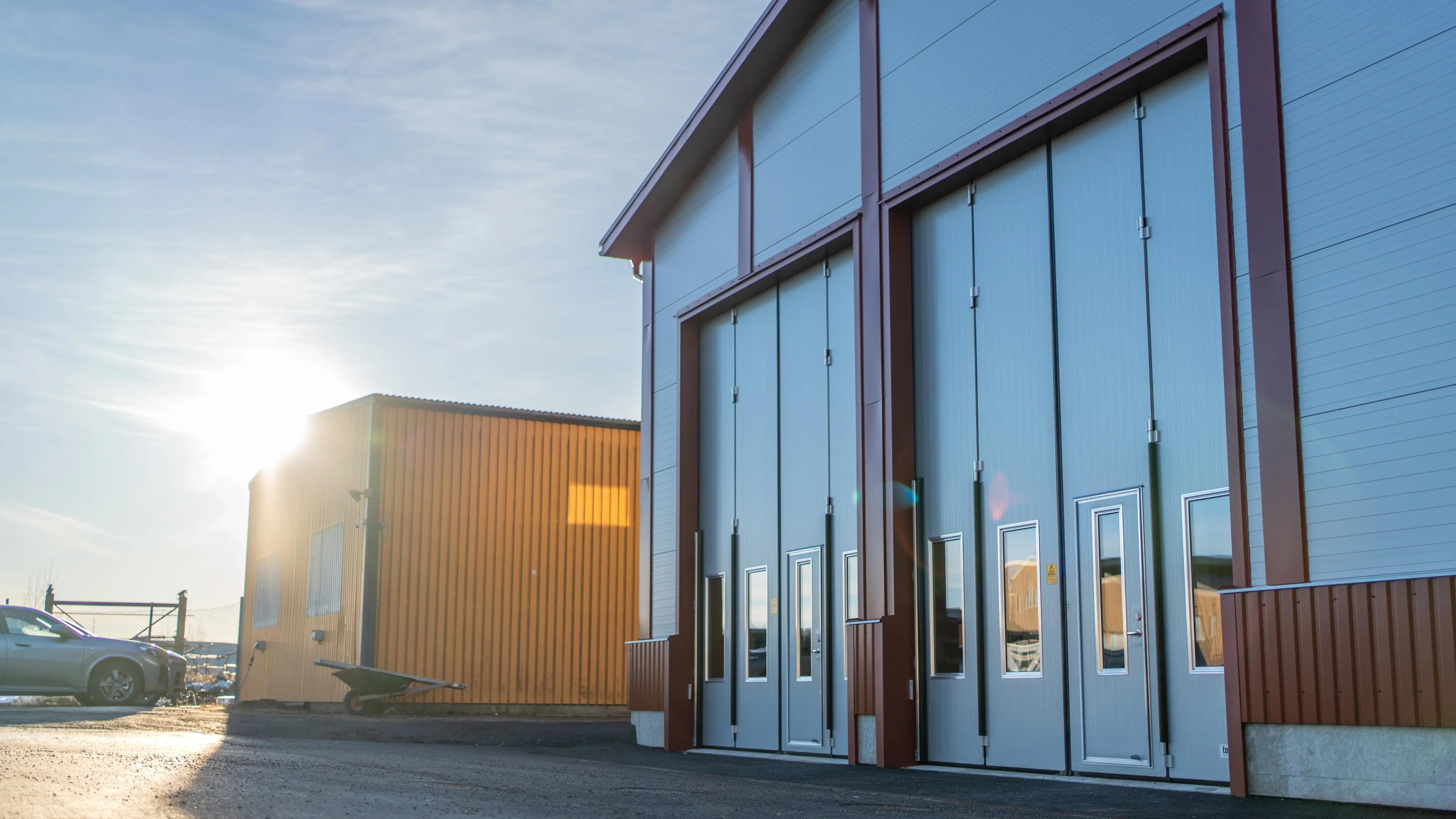

Vikport Q-door FX, monterad i ett lastbilsgarage

The Most Cost-Effective Door? The One That Never Stops Working.

Since 1962, Torverk has delivered folding doors to emergency services across Sweden and abroad. Organizations where a malfunctioning door could cost lives.

Industrial operations may not face the same stakes, but the financial impact of a halted production line can be just as severe.

We’ve never set out to build the cheapest door on the market. But today, many of our customers say that’s exactly what we’ve done—because a door that keeps working, year after year, ends up being the most affordable one.

In 2018, a fire station in Stockholm experienced multiple break-ins. One of their old doors no longer closed fully, and thieves slipped through the gap to steal battery-powered rescue tools. After switching to 13 new folding doors from Torverk, the break-ins stopped, and the improved insulation meant they even had to turn the heat down.

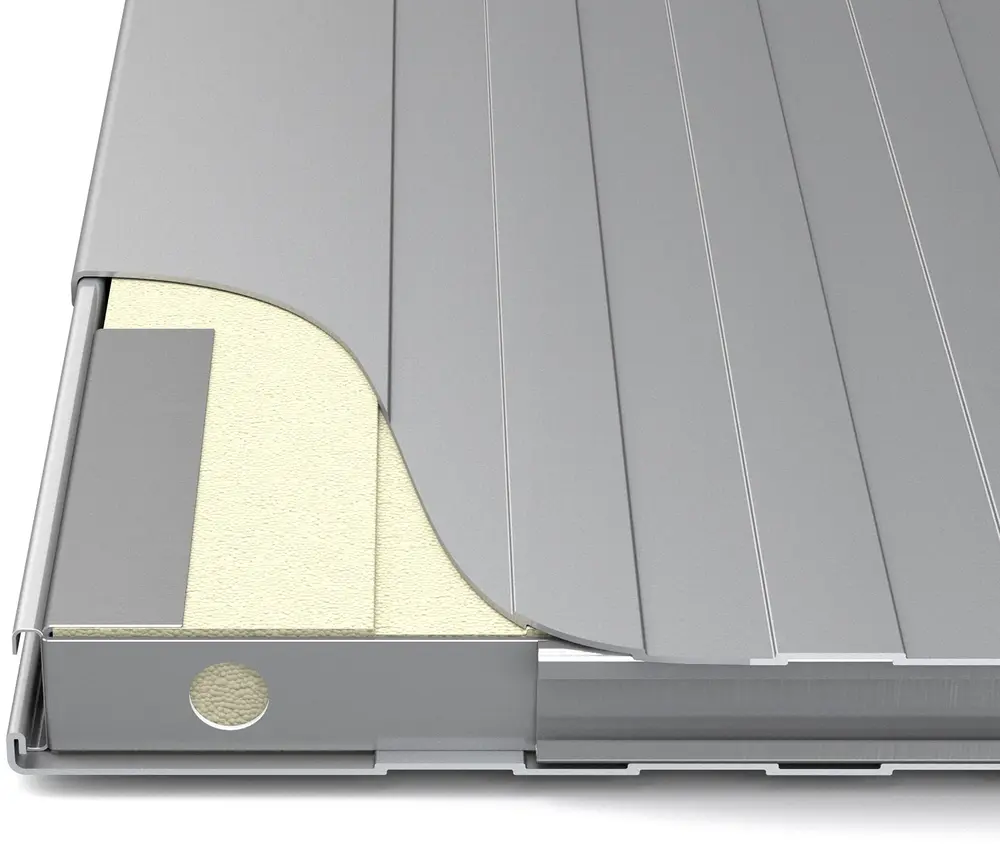

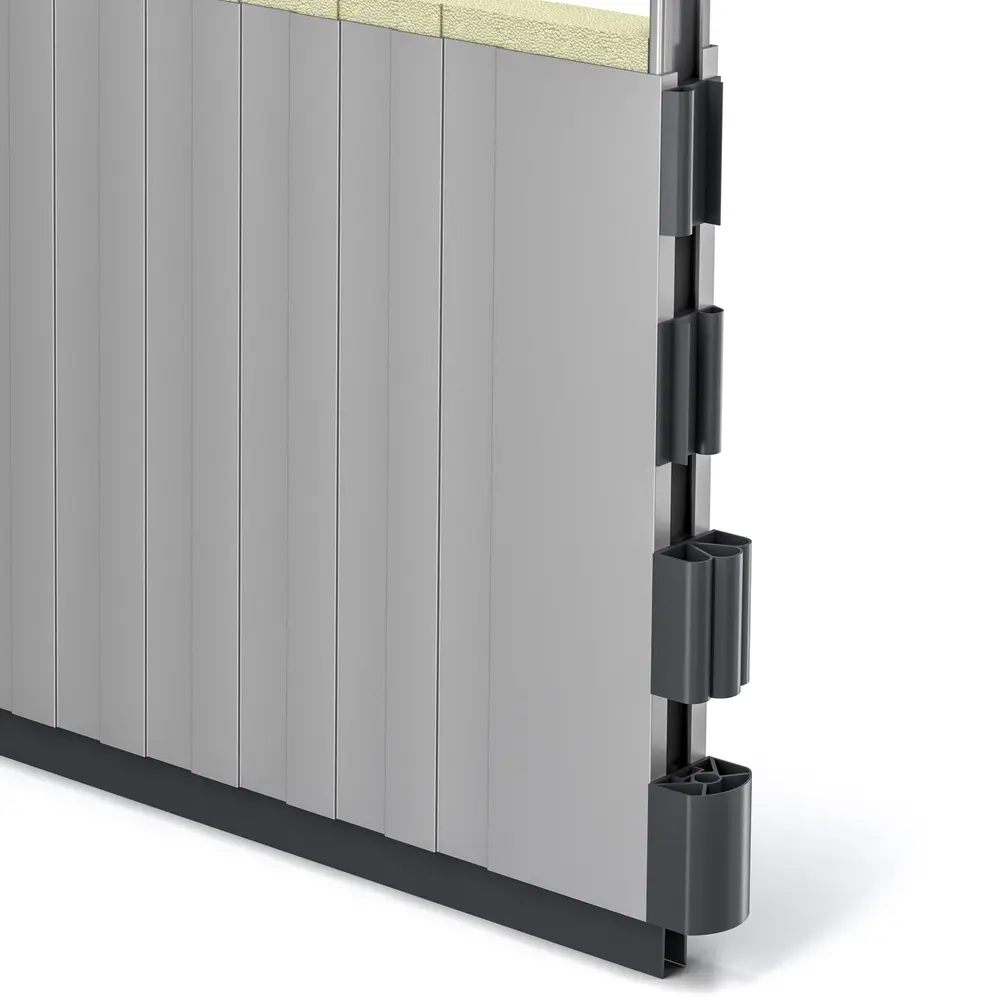

Built to Last, Layer by Layer

Each door panel is formed from 0.6 mm corrosion-protected SSAB steel, precision-rolled into a rigid, torsion-resistant structure.

Inside, we inject high-pressure polyurethane foam at 4.5 bar. The foam expands into every cavity and bonds chemically with the metal and end profiles, forming a solid sandwich construction.

Once cured, the foam becomes as hard as a hockey puck, and four times more insulating than standard home insulation. Millions of gas-filled microcells prevent heat from transferring through the door.

Corner reinforcements are made from 4 mm hardened DOMEX steel. Extremely sturdy.

The metal sheet is bent into a wave pattern to optimize torsional rigidity.

The exterior cladding uses 0,6 mm thick biobased-coated SSAB GreenCoat sheet metal, rated C5 for corrosion resistance in aggressive environments.

Save Energy. Stay Operational.

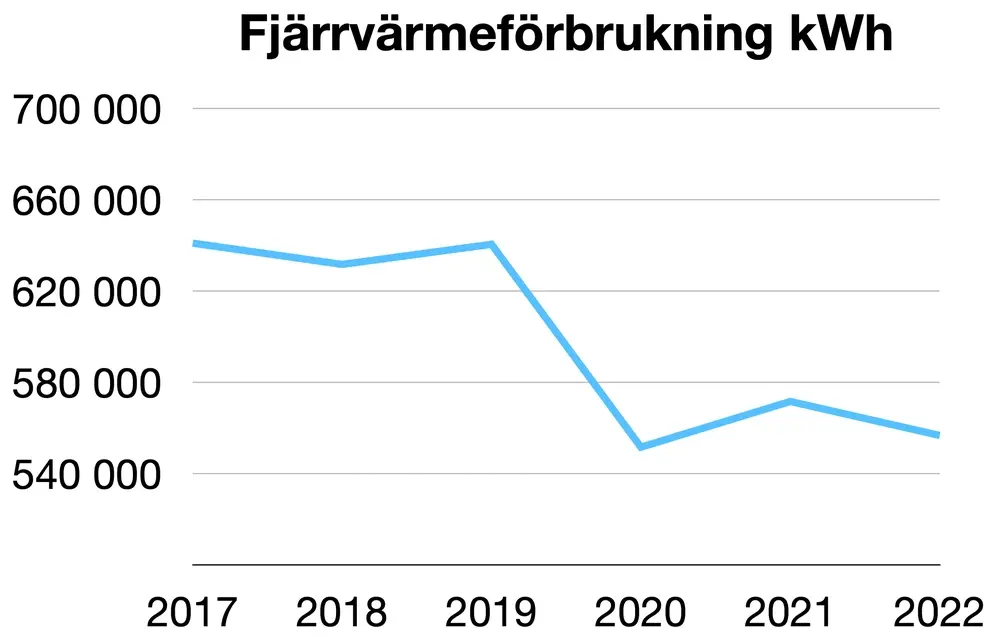

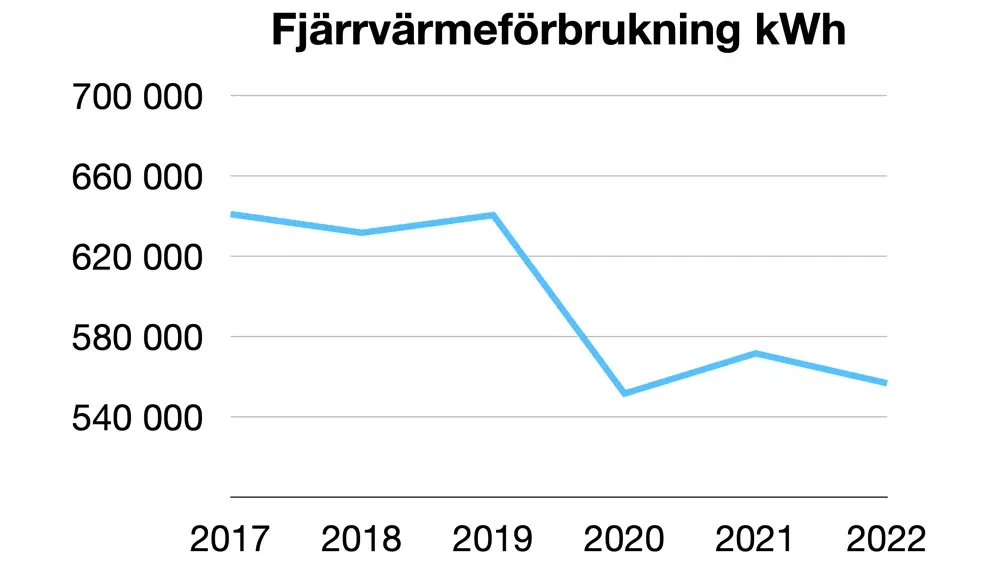

Graph showing how much the district heating of a truck workshop dropped after switching out seven folding doors to Torverk Q-Door FX.

In 2019, a truck workshop replaced seven of its doors with Q-Door FX. The next year, their district heating consumption dropped by 90,000 kWh.

Seriously Energy Efficient

The U-value measures how well a door is insulated.

And since proper insulation requires a robust build, the U-value is also an indirect measure of durability and reliability.

U-values vary widely between brands, so always compare real, tested values. A low number means better insulation and lower heating costs.

With its sandwich construction and engineered core, Q-Door FX offers exceptional thermal performance. It''''s a solid choice for businesses looking to reduce energy use and avoid costly interruptions.

Key benefits:

Significantly reduces energy costs
Supports your sustainability goals
Maintains a stable indoor climate all year

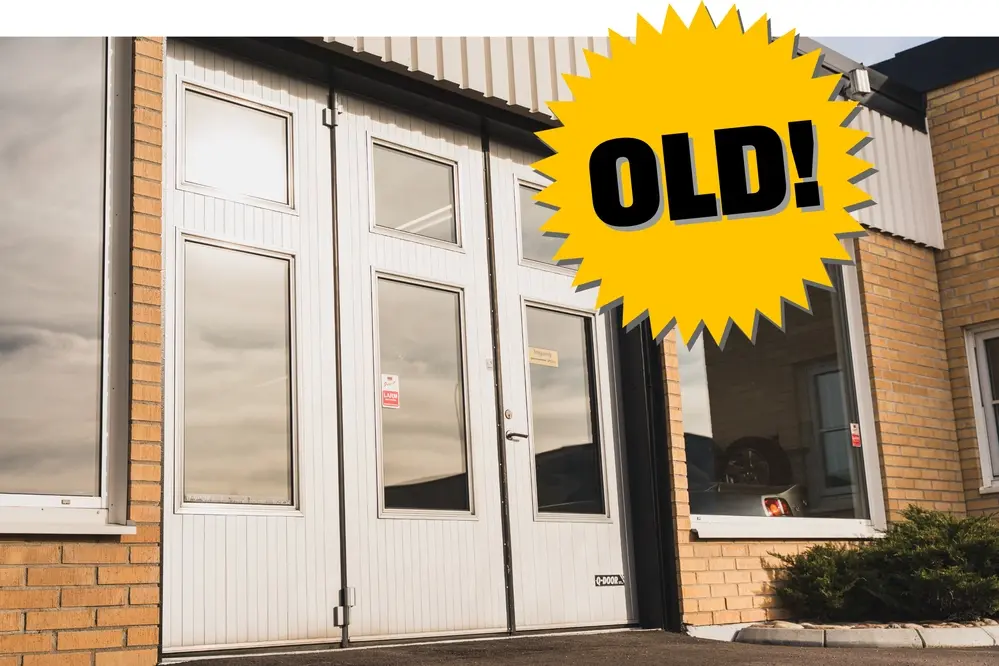

31 year old manual Q-Door FX folding door, that is still in operation.

A 31-year-old manual Q-Door folding door in a car showroom in Karlstad, Sweden. The owner recently replaced three other doors but kept this one—because it was still in great condition.

Designed for 40 Years of Service

At Torverk, we build for longevity. Our vision is to lower operating and energy costs by delivering doors that insulate better and last longer, regardless of conditions.

Using SSAB steel, DOMEX reinforcements, and solid-core sandwich panels, we''''ve created a folding door that handles tough environments with minimal maintenance.

"After 20 years, our Torverk doors were still in ridiculously good shape. All they needed were new sealing strips."

Hellbergs Doors, Mellerud

Custom-Built to Fit Your Needs

Every Q-Door FX is made to order, designed for maximum operational reliability, smooth logistics, and insulation that’s up to four times more efficient than conventional materials.

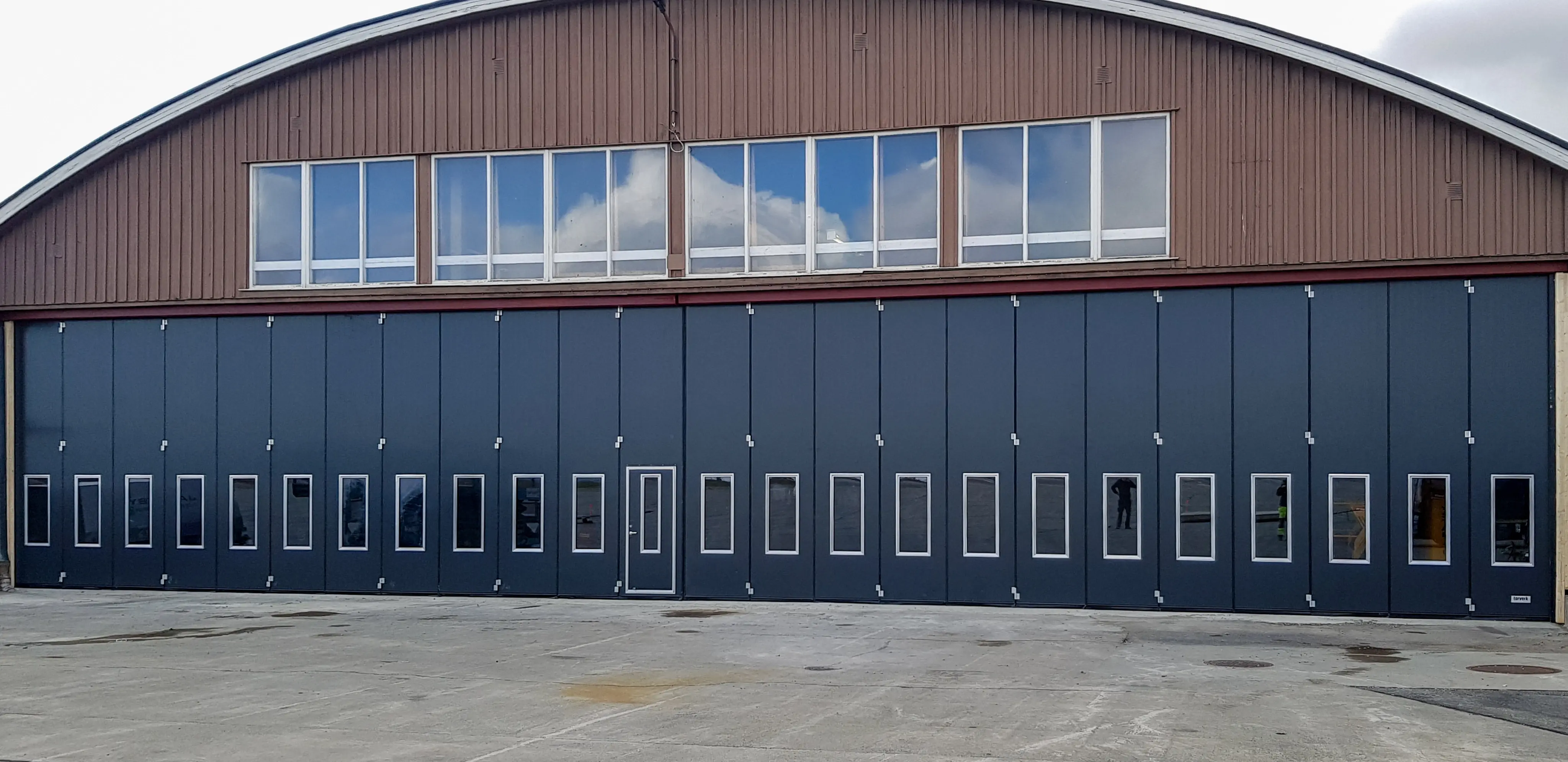

Up to 25 meters wide

Manual folding doors: Up to 6 m height, 1.3–25 m width.

Motorized: Up to 6 m height, 14.5 m width

Choose from 10 standard colours, paint or foil wrapping

Choose from 10 standard colors or paint your door in any RAL or NCS S shade.

If you want a pattern or image on your door, we print it on a film that is applied to the surface. We''ve produced doors with wood grain and a wide range of other designs.

Note: Colors displayed on screen may appear different in reality.

Selected color: Antikvit – RAL 9002

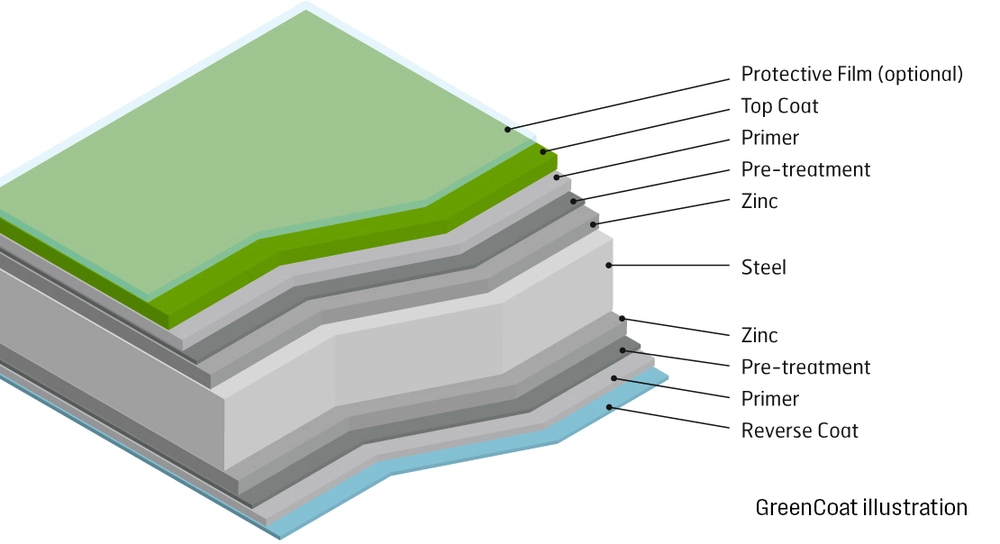

SSAB GreenCoat Steel corrosion protection class C5

Corrosion-Protected GreenCoat Steel from SSAB

Source: SSAB – ssab.com

EPDM rubber seals keep the door tightly sealed, even in hurricane-force winds.

Storm-Proof Sealing

We’ve developed our own heavy-duty EPDM rubber seals that stay flexible even in low temperatures. They won’t shrink or crack over time.

Two of our doors operate at a research station in Antarctica, where salt-laden winds reach 120 km/h. It took 20 years before the floor seals needed replacement.

Locking Options

Electric doors don’t require mechanical locking, since the motor’s linkage keeps the door shut by design.

But if you need additional perimeter security, we offer:

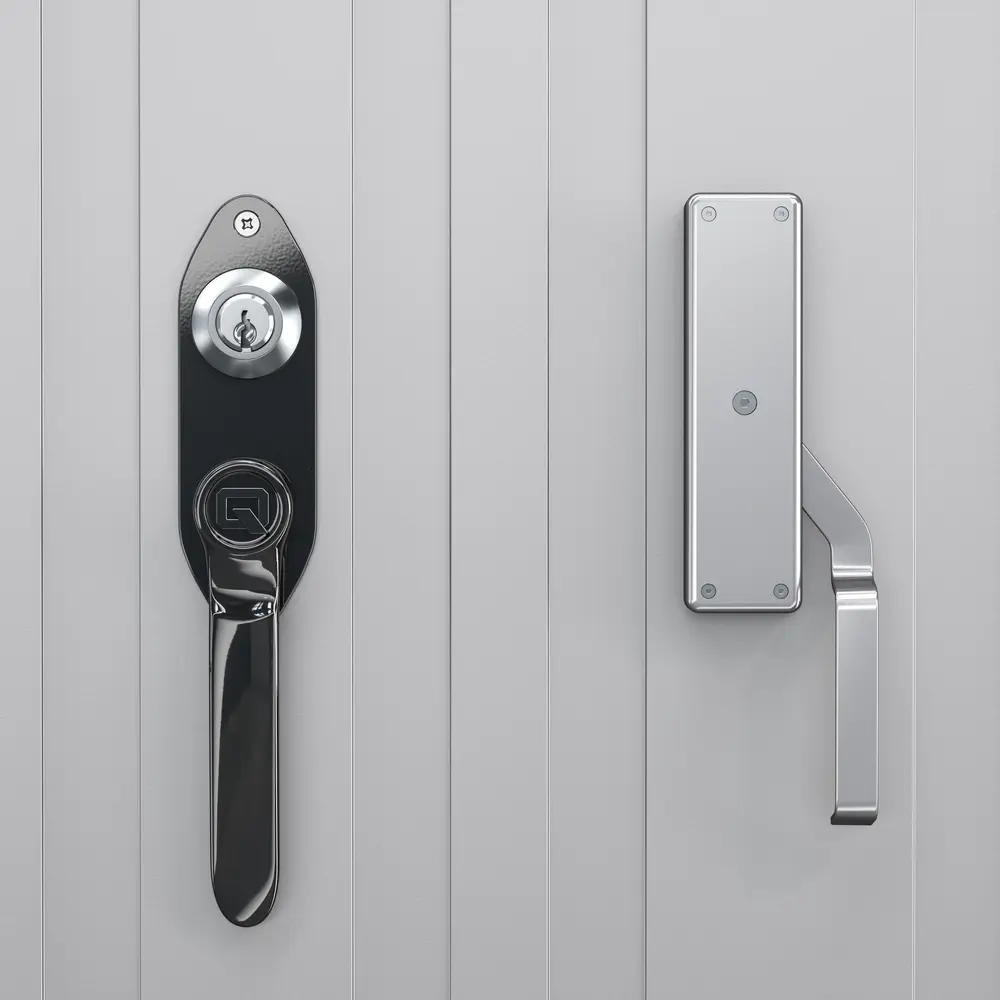

Padlock-ready or cylinder-lock espagnolettes
Electrical shut-off when locked

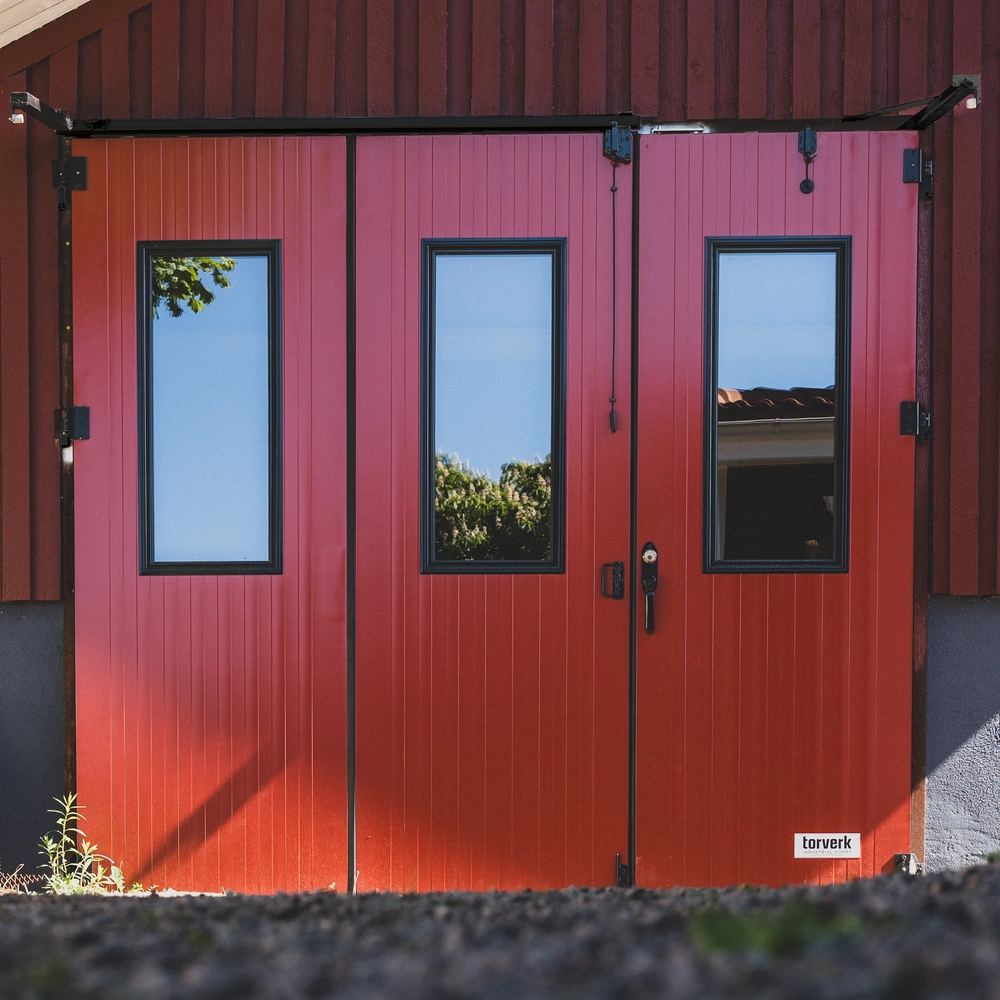

Window & Pedestrian Door Options

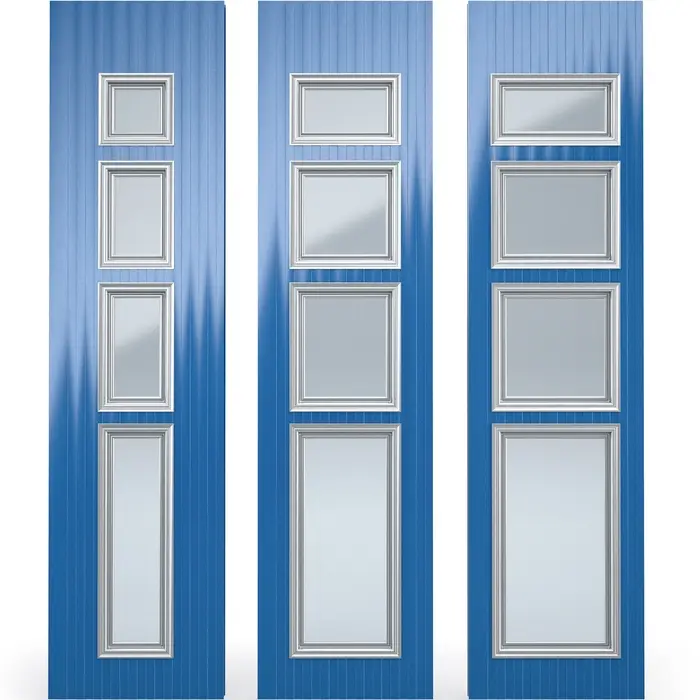

Displays the available window options for the Torverk Q-Door FX.

Windows and Tinted Glass

Add windows to bring in daylight—but remember: more glass means more heat loss.

For privacy and solar control, we offer tinted glazing.

Our window units feature:

Gas-filled insulation glass
Thermally broken aluminium frames

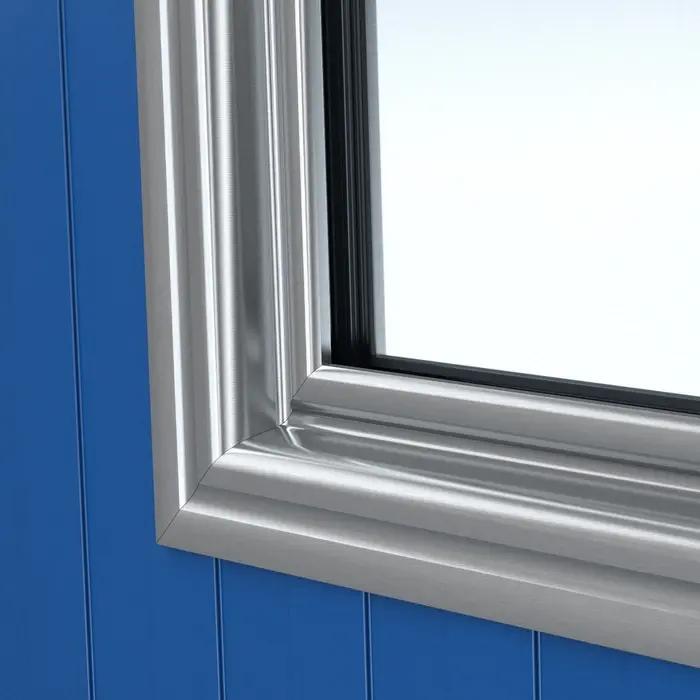

The windows in Torverk’s folding doors feature gas-insulated glazing and thermally broken frames.

Thermally broken aluminium frames

Each window pane is hand-installed in an aluminium frame with a thermal break to minimize energy loss through the door panel.

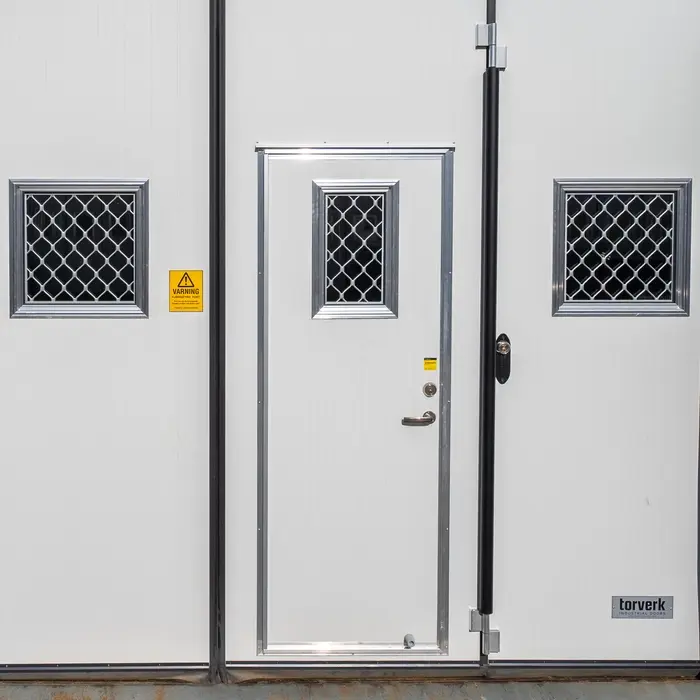

Visar gångdörren i en Torverk Q-Door FX, med armerade fönster för ökad inbrottssäkerhet.

Save energy with a pedestrian door

If people regularly pass through your door, a pedestrian door saves both time and energy—there’s no need to open the entire door for one person.

Torverk’s pedestrian doors come with a standard height of 2050 mm and can be equipped with various locking options, door closers, anti-tamper protection, and windows. For motorized doors, a door sensor is installed to automatically lock the pedestrian door when the main door opens.

Engineered for Uptime

Downtime is expensive. That’s why we build all hinges and hardware from high-grade steel, welded directly to the wall for maximum strength.

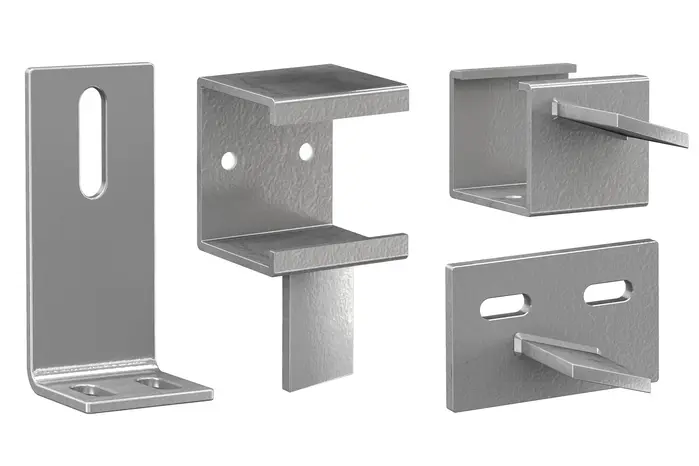

Heavy-duty steel fittings for the Q-Door FX folding door

Heavy duty fittings

The door is secured to the wall using heavy-duty fittings in large dimensions.

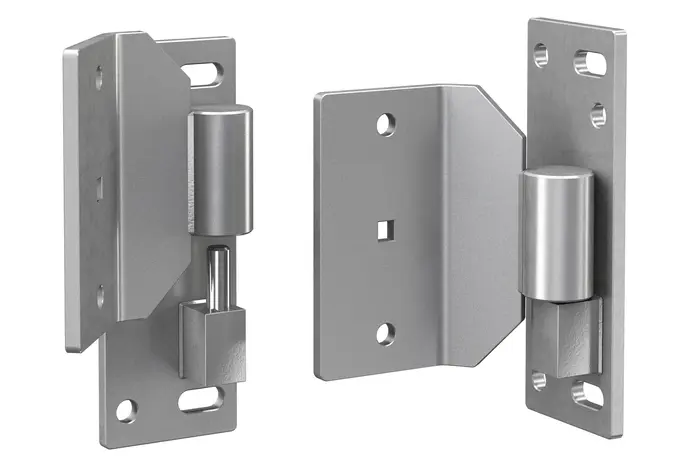

Standard hinges for the Torverk Q-Door FX folding door

Robust hinges with minimal friction

In Torverk’s standard hinges, the hinge pin rests on a ball made of ultra-hardened steel. This reduces the contact surface between the pin and the ball, minimizing friction and wear.

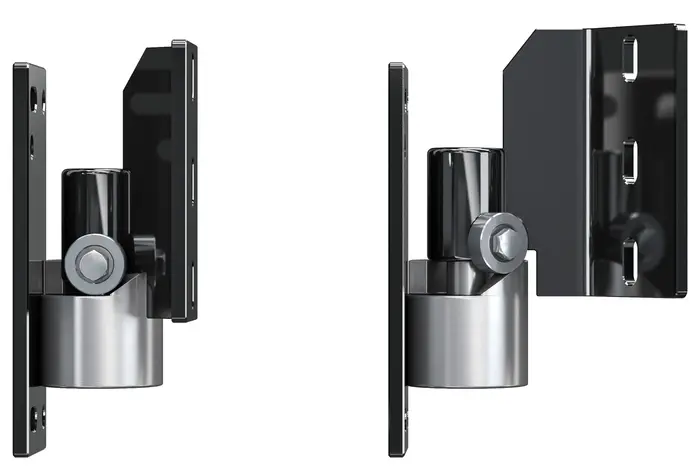

Lift-off hinges for folding doors reduce wear on floor seals.

Optional lift-off hinges

In the 1990s, a customer complained that their floor seals were wearing out too quickly. So we invented hinges that lift the door one centimeter before it opens. This prevents the seals from dragging on the ground, helping them last much longer.

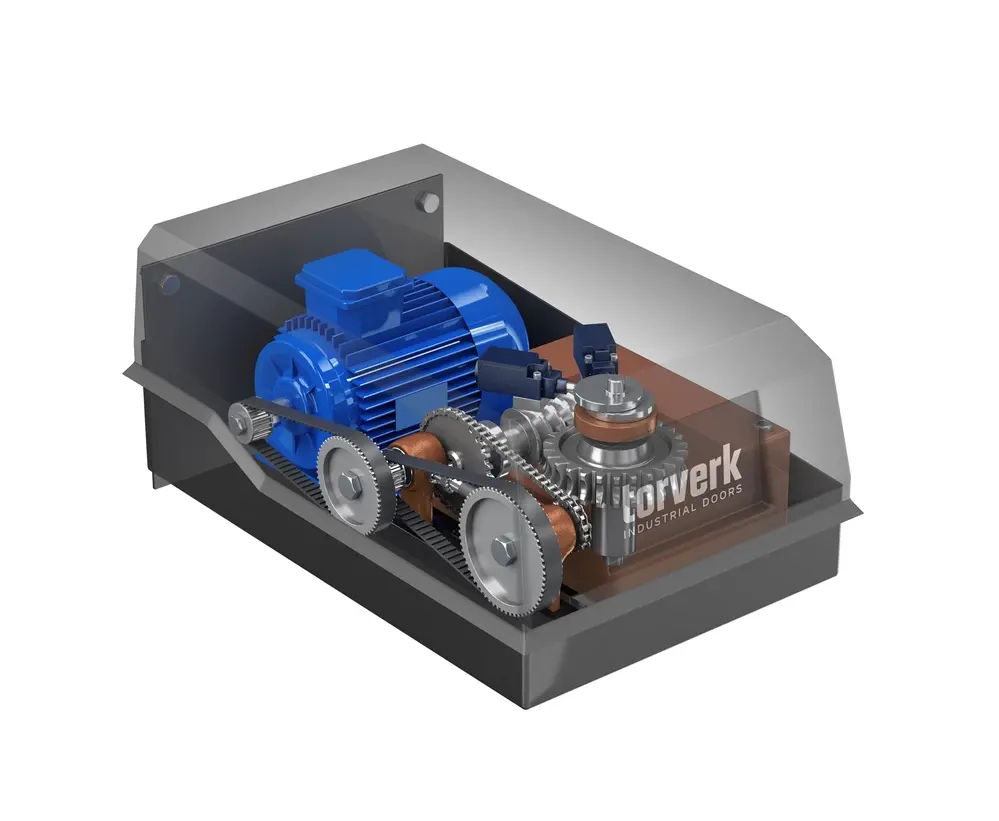

Motor till Torverk Q-Door FX - god för över en miljon öppningscykler

Motor System – Tested for 1 Million Cycles

Q-Door FX can be powered by Torverk’s own weatherproof motor, tested for over 1 million opening cycles. The motor can be top- or side-mounted, depending on your available space.

For wider doors (up to 14.5 m), we offer our new linear drive system—a robust and space-efficient alternative that maintains the same reliability.

Automation, Access & Safety

A Torverk door can be fully automated to streamline logistics and reduce energy loss.

You can control it using radar, remote control, pull cords, push buttons, SMS apps, and a wide range of other triggers. Access can be managed with keys, card readers, or entry codes. The possibilities are virtually endless.

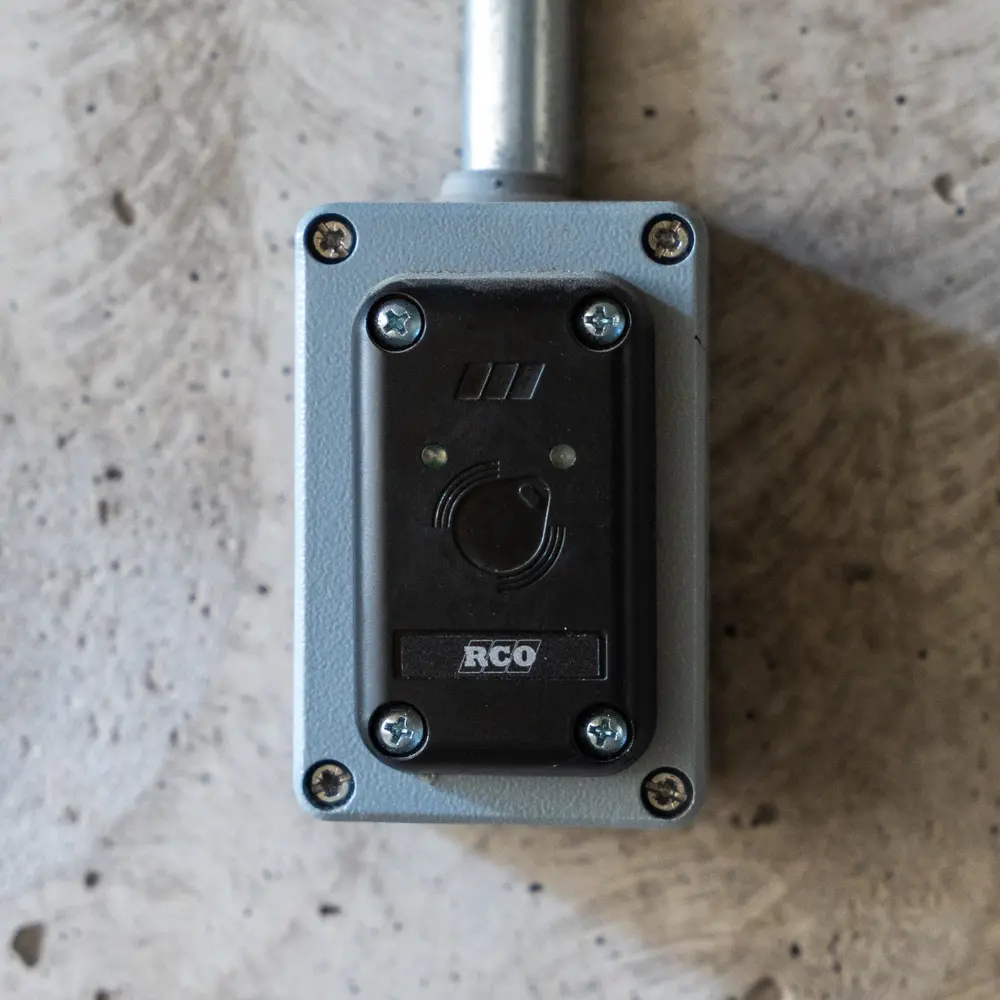

Tag reader for a Torverk Q-Door FX Folding door

Customizable access control system

Choose the access control system that best suits your operation. Tag readers work well for residential complexes, but in high-traffic industrial settings, automated opening with radar or a simple pull cord is often a better option.

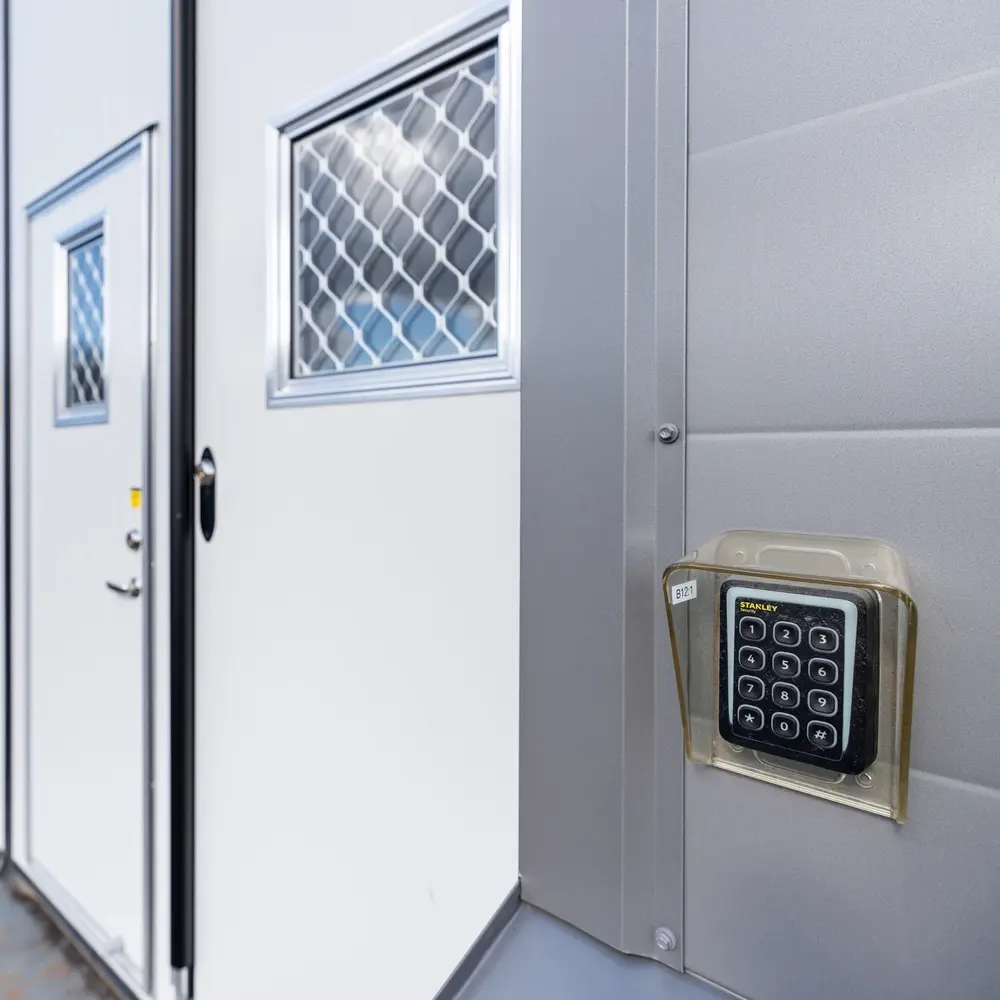

Control access with a keypad

With a keypad, you can easily grant drivers and others access to your facility without needing to be there yourself.

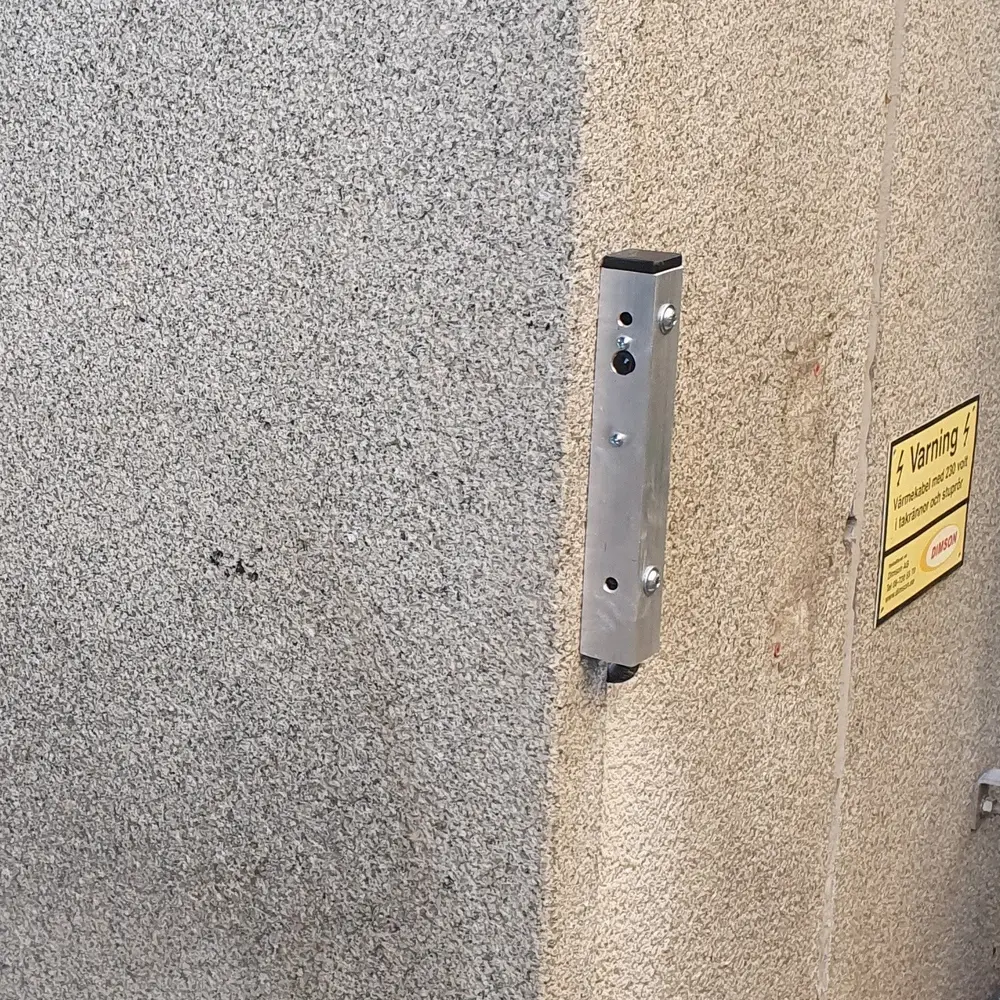

Photocell that detects if something is in the way of the door

Multiple layers of safety

A door should never cause harm. That’s why Torverk doors come standard with pinch protection, finger guards, load sensors, and photocells. The photocell detects if something obstructs the door and signals the control unit to reverse its movement.

For even greater safety, you can add radar sensors, induction loops, additional photocells, and warning lights.

Open/close functions

A Torverk door can be controlled and automated in many different ways to optimize logistics and reduce energy loss.

It can be operated using radar, remote control, pull cords, push buttons, SMS app control, and a wide range of other activation devices.

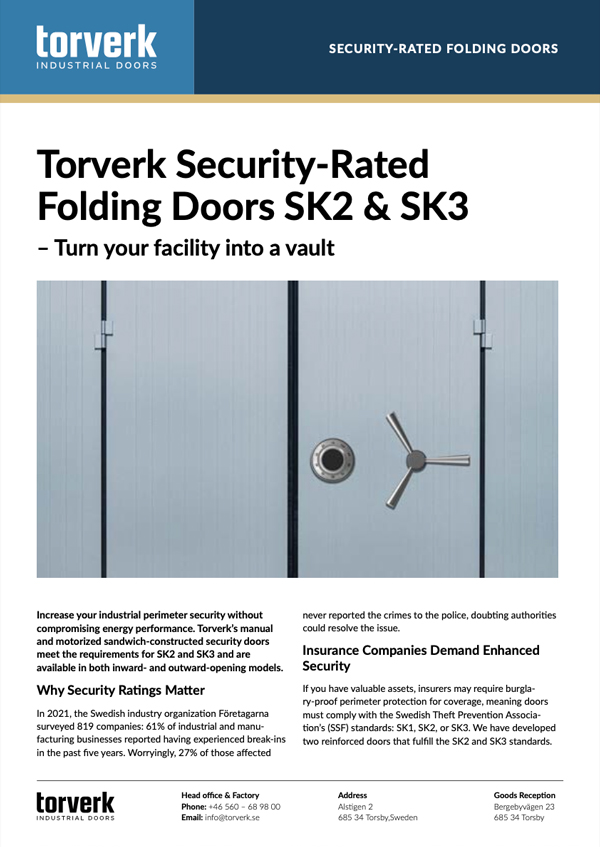

Security-Rated Versions: SK2 & SK3

For high-security operations, we offer certified folding doors in SK2 and SK3 classifications.

SK2: Can be equipped with windows and pedestrian doors
SK3: Highest level of protection; no windows or pedestrian doors

All models are tested and certified by RISE and meet Sweden’s toughest burglary resistance standards.

More about security-rated doors

Surface Treatments for Any Environment

Whether your facility faces salty coastal air, humid car wash conditions, or dry indoor storage, we offer surface protection packages tailored to your needs.

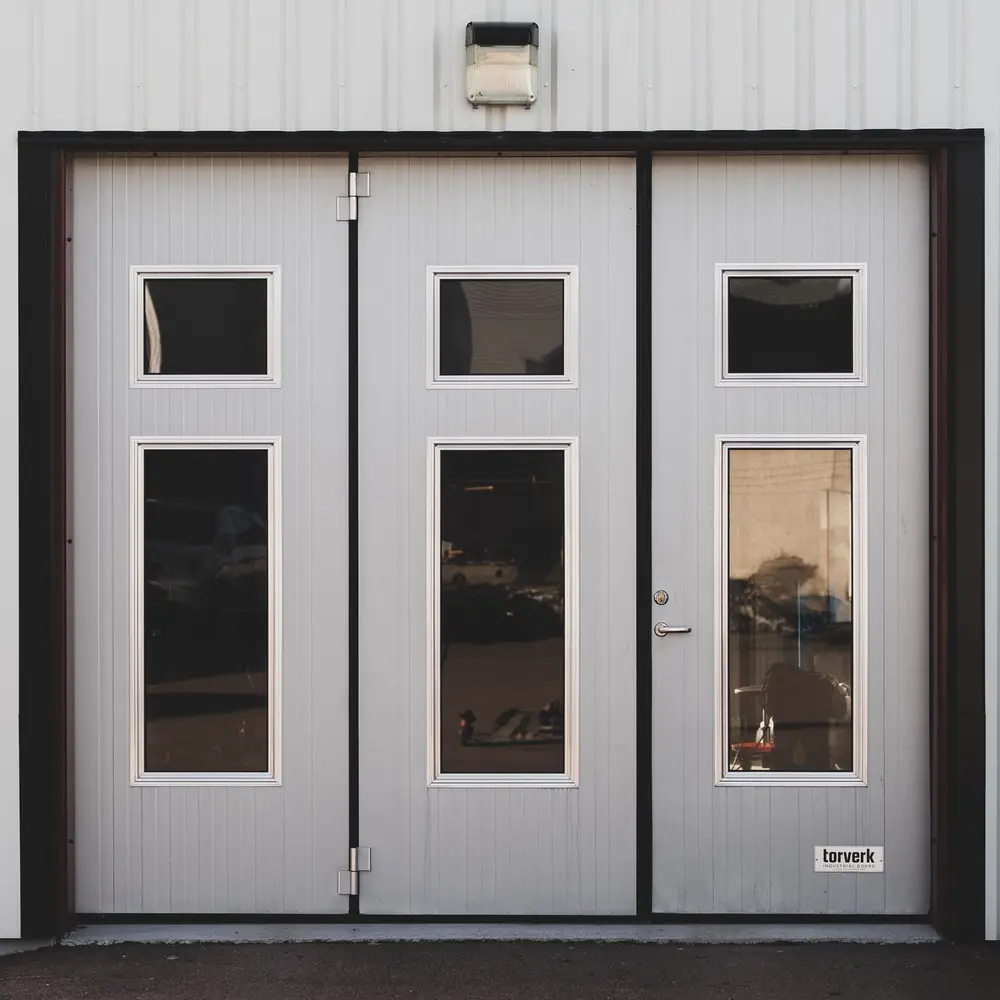

Folding door with standard surface treatment

Standard package

Perfect For dry, low-stress environments.

Design package

Black-lacquered hardware and trims for premium look

Wash bay

Designed for high-moisture areas

RC5

For aggressive industrial environments

RC5M

Extreme protection for coastal and marine conditions.

“Our new doors paid for themselves in just 3.5 years thanks to the energy savings.”

– Truck workshop owner

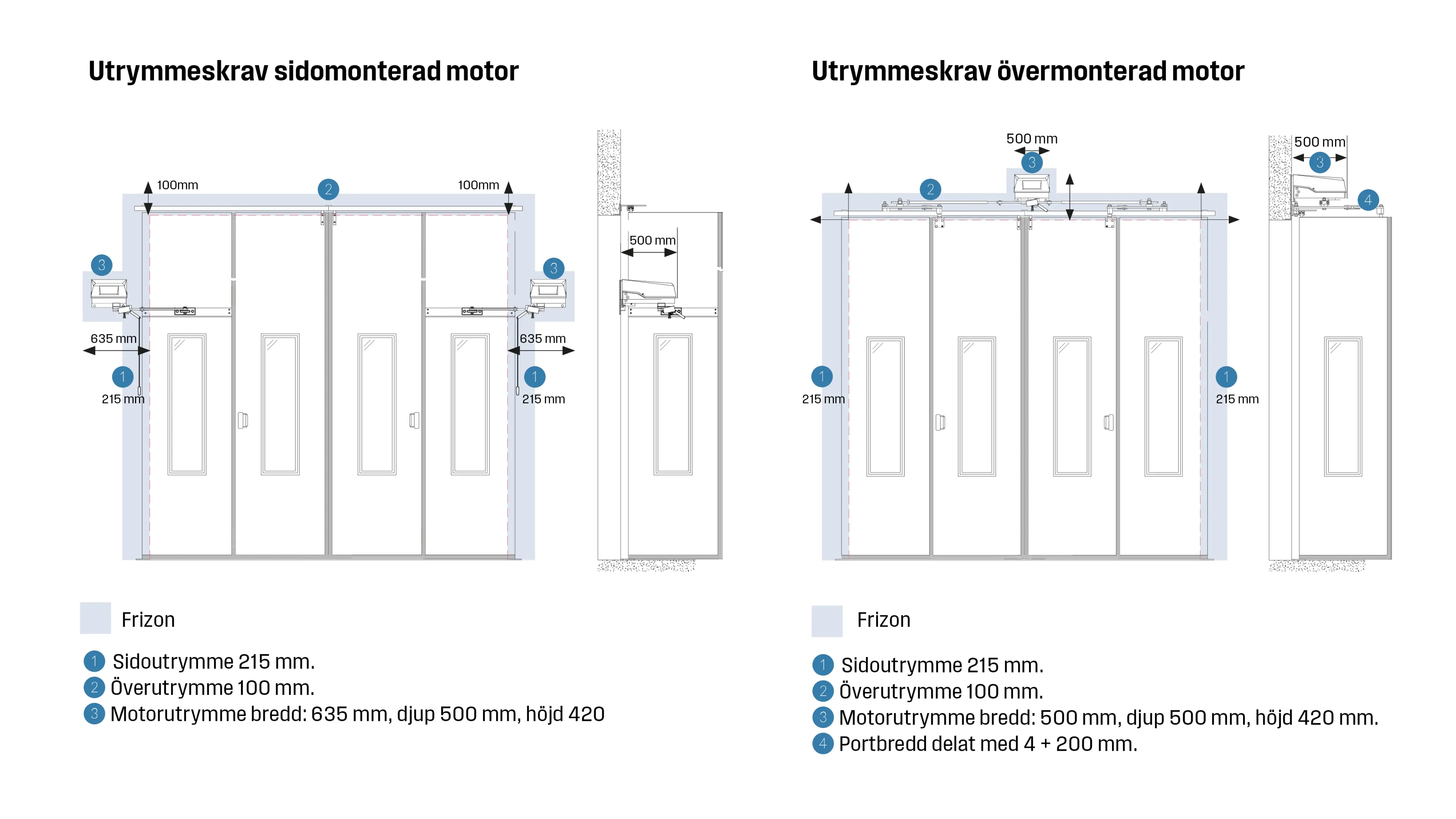

Installation Space Requirements

Refer to our technical datasheet for motor clearance and installation space dimensions.

Utrymmeskrav runt en Torverk Q-Door FX Vikport

Customer Case Studies

On our inspiration page, you’ll find a wide range of customer case studies. Here are some of the most interesting ones:

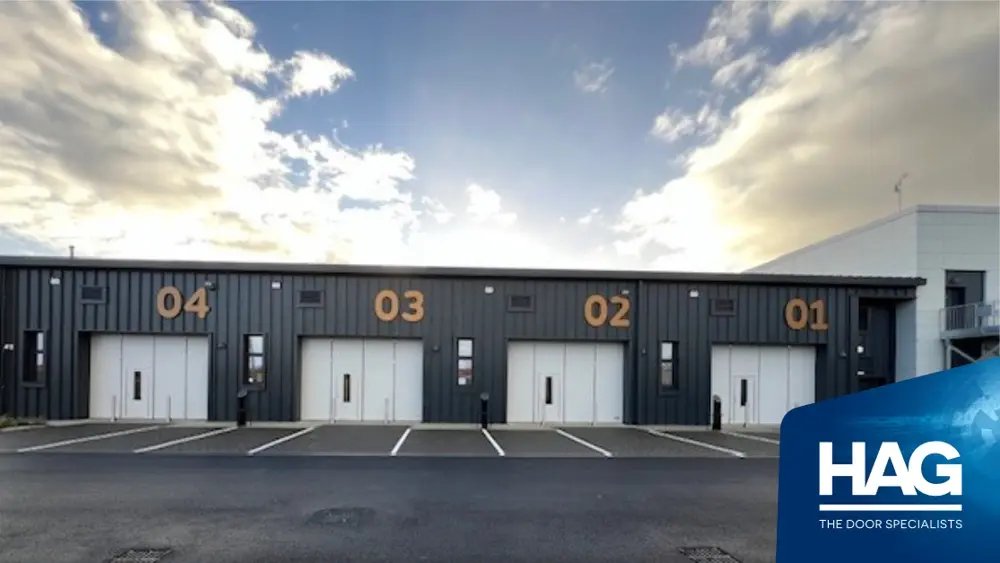

Q-Door FX at Parc Gelli, UK

Q-Door FX at Parc Gelli, UK

Modern British business park focused on energy efficiency chose Torverk folding doors for sustainability and climate performance.

Read case…

Which Door Does a Door Manufacturer Choose?

Sebastian Hellberg proudly calls himself a door and gate nerd. His company, Hellbergs Doors in Mellerud, manufactures custom-certified premium steel doors that protect lives and property. He chose Torverk folding doors to improve energy efficiency.

Read customer case…

Nya portar betalade sig själva på 3,5 år

A Swedish truck workshop cut its district heating use by 90,000 kWh annually after replacing seven old doors with insulated folding doors from Torverk—paying back the investment in just 3.5 years.

Read customer case study…

Torverk Door at Bjälbo Trädgård in Skänninge

“A door’s job is not to get in the way.”

Bruno Bergmar grows potatoes that feed 220,000 people in Sweden and Norway. To prevent the potatoes from drying out, he needs well-insulated storage facilities and doors.

Read case

Contact our specialists

CEO & International Sales

Peter Löfvenholm

Phone: +46 560-68 98 00

Mobile: +46 70-523 53 83

Email: peter.lofvenholm@torverk.se

Documentation & Resources

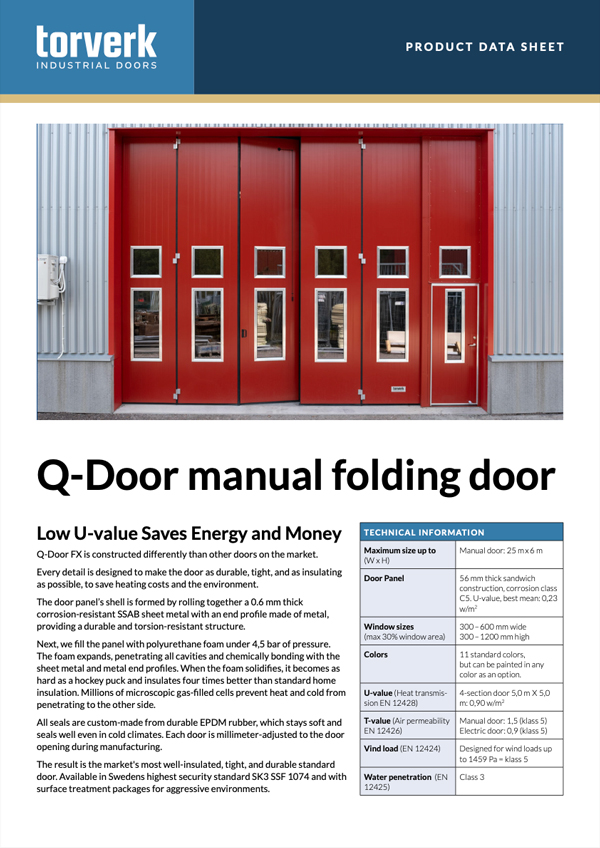

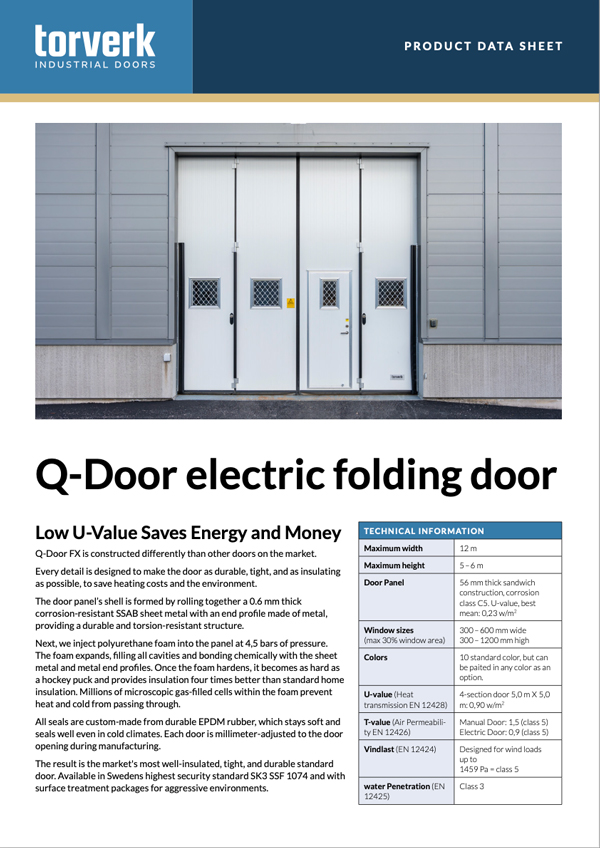

Download our Q-Door FX product sheet for specs and planning details.

Datasheets

Still Have Questions? Check out our FAQ

How Can You Claim That Torverk Doors Are Extra Reliable?

Here''s how:

If a door stops working, your operation stops.
If your operation stops, it costs time and money.
So the door must work, every day, year after year.
That''s what we mean by reliability.

Reliability isn''t about one part. It''s about the whole system. Every component in the door is designed to last, operate smoothly, and withstand tough conditions. That''s how you avoid unnecessary downtime.

Torverk folding doors are built with reliability in mind, down to every detail:
The door panel is torsion-resistant and handles heavy use without deforming.
Hinges have minimal friction and are lift-type, so floor seals don''t drag or wear out.

Motors, link arms, and power transmission are sized for millions of cycles—and if something breaks, the door can easily be disengaged so operations continue.

Photocells are unaffected by strong sunlight and resistant to impacts.
Seals and rubber strips stay flexible even in harsh cold.
Safety edges last for years without losing sensitivity.

This isn''t guesswork.

Since 1962, we''ve developed our doors in close collaboration with demanding customers like fire departments and industrial companies—where downtime is simply not an option.

Some examples of how we build reliability:

Our door panels are sandwich-constructed with hardened steel fittings.
The hinge pins rest on steel balls with minimal contact area, reducing wear.
We don''t use reflective photocells that are easily disturbed by sunlight or shocks.
Our safety edges use conductive rubber, not contact strips that can fail.
Motor drive units are tested for well over a million cycles—and can be disengaged with a simple manual action.

All this combined means our doors often operate trouble-free for over 40 years in practice.

How Much Can You Save by Switching to Q-Door FX?

Your savings depend on your current energy consumption and the size of your door. Use our configurator to estimate your door’s U-value, and calculate energy usage with our calculator.

Can I Get the Door in a Color That Matches My Building?

Yes, we offer 10 standard colors, and you can also have your door painted in any RAL color. Additionally, you can have the door laminated with any design you choose.

How Often Does the Folding Door Need Maintenance?

We recommend regular service and maintenance according to our guidelines to ensure the door maintains its performance and to keep the warranty valid. Typically, this means two service visits per year, but it also depends on how frequently the door is opened and closed.

Can I Get Help with Installation?

Yes, we offer professional installation through our certified installers.

What Is the Difference Between Security Class 2 and Security Class 3?

Security Class 2 doors can be equipped with windows and pedestrian doors, while Security Class 3 doors offer stronger burglary protection but are not permitted to have windows.

What Types of Businesses Are Suitable for Q-Door FX?

Our doors are especially well-suited for industries, warehouses, workshops, and properties with high demands for energy efficiency, operational reliability, and long service life.
